This structure is made a column and rib iterated along a shape. The roof uses the same plan shape and a section profile, which is a modified version of the rib profile.

Voila_Capture 2014-07-06_12-12-29_PM

The columns are instances, but, to avoid a repeating texture pattern, rotated using a noise function. This randomized rotation can be disabled. For example, if they are not circular or bear some repeating insignia such as a crest or coat of arms, etc.


Voila_Capture 2014-07-05_09-09-58_PM

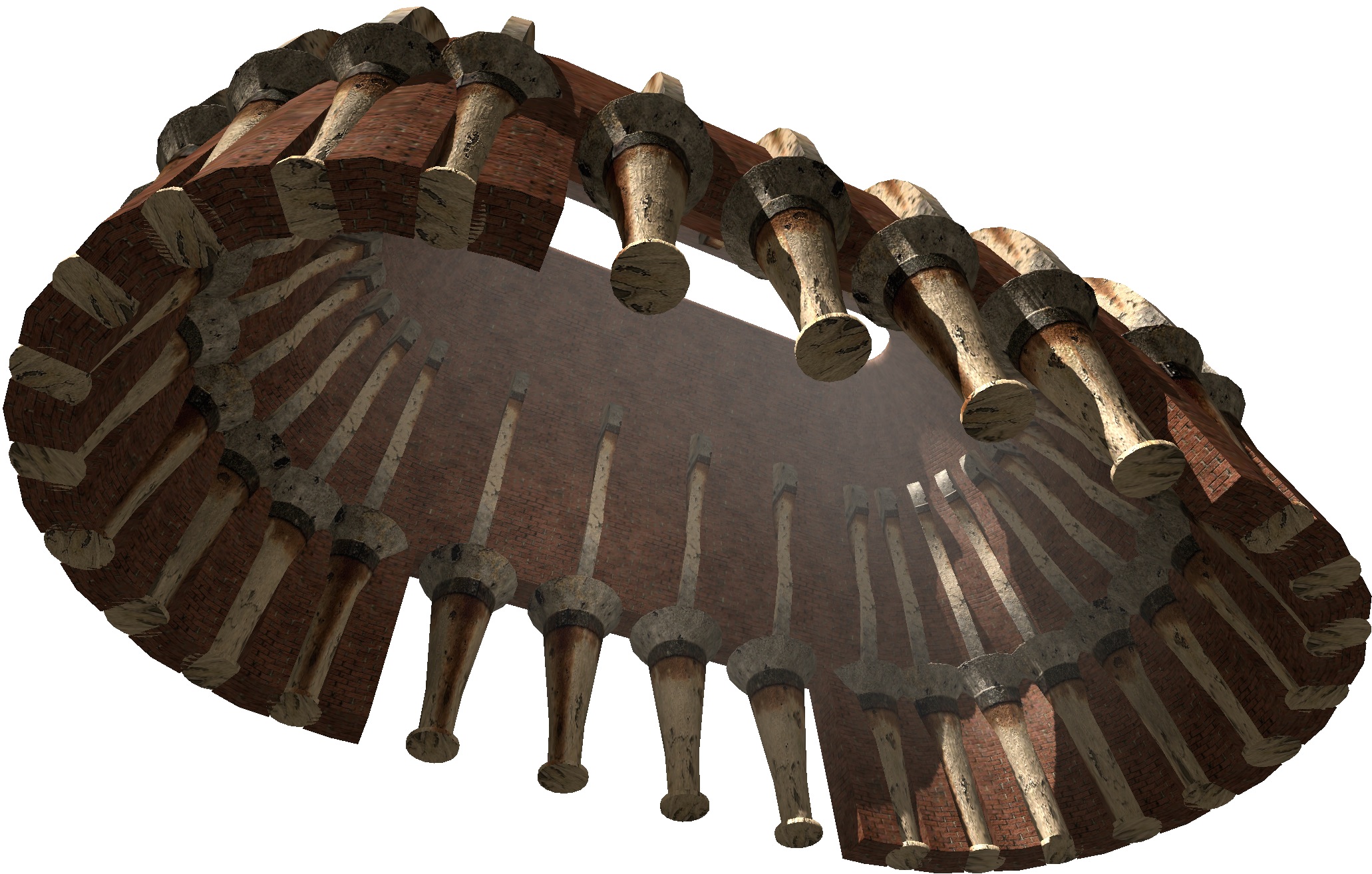

What better way to get to know a building than a good’ole worms-eye view…


Voila_Capture 2014-07-06_01-12-53_PM

Once an Archimatix model has been authored, it is a joy to play with. Especially when changing the plan shape to generated unexpected and beautiful forms. Here, the simple bi-apsidial plan shape was modified to add more parametric curves.

Voila_Capture 2014-07-06_01-17-10_PM Voila_Capture 2014-07-06_01-19-03_PM


Voila_Capture 2014-07-06_01-24-49_PM Voila_Capture 2014-07-06_01-25-40_PM


Desert Corridor

This is a permutation the Equatorial Hall of Heroes model. The plan code was altered to allow the shape to attenuate and curve.

Not sure what it is, but it is interesting. It looked like it needed a desert setting…
